SCD11 4x0.6x0.6mm Yellow HPHT Diamond Plate With Full Four 90 Degree Corners

Name: SCD11 4x06x06mm Yellow HPHT Diamond Plate With Full Four 90 Degree Corners
Brand: Infi
Price: 1 USD

Quality SCD11 4x0.6x0.6mm Yellow HPHT Diamond Plate With Full Four 90 Degree Corners wholesale

Brand Name : Infi

Model Number : SCD11

Place of Origin : Hunan, China

MOQ : 10pcs

Payment Terms : T/T,Western Union,MoneyGram

Supply Ability : 2000pcs/month

Delivery Time : 5-8 working days

Packaging Details : in PVC box then in Carton box

Diamond type : Synthetic (lab created),HPHT diamond

Diamond shape : Rectangle, Long strip

Diamond clarity : Pure, no inclution no defect

Diamond color : Yellow, or dark yellow

Diamond cut : laser cut and have Full four 90° corner

Usage : dressing tools, Record Stylus, Dental and ophthalmic tools

Type : Best Quality of single crystal diamond plates

Hardness : Moh's 10

Contact Now

SCD11 4x0.6x0.6mm yellow HPHT diamond plate with full four 90 degree corners

We cut the Mechanical single crystalmcd HPHT plates into logs, to meet the size and shape requirements of dressing tools or other tools.

Mechanical single crystal mcd has excellent machining properties: high hardness, long life, high wear resistance, predictable properties for cutting tools, wire drawing, dressing super-finishing and wear applications,for processing gold, silver, copper, aluminum and other non-ferrous metals and graphite, carbon fiber, ceramics and other hard and brittle materials.

SCD11 4x0.6x0.6mm Yellow HPHT Diamond Plate With Full Four 90 Degree Corners

Product name:	MCD Diamond logs
Type:	Synthetic (lab created),HPHT diamond
Shape:	Rectangle, long Long strip
Customized support:	OEM, ODM
Usage:	for dressing tool, Record Stylus, Dental and ophthalmic tools
Color:	Yellow, or dark yellow
Features:	Offer high quality surface finishes
Orientation:	ordinary 4pt (100 on six sides)
Nitrogen content:	<200 ppm
Lateral Tolerance :	+0.1/-0 mm
Edges:	Laser Cut
Polish:	Upper and bottom polished
Polish Roughness :	Ra < 30 nm
Thickness Tolerance:	±0.05 mm
Selling Units:	Single item
Single gross weight:	0.005 kg

Advantages of diamond logs for dressing tool:

Diamond maintains a certain width and thickness, can be used from beginning to end, the performance will not change, and there is no need to manipulate the tool during its use.

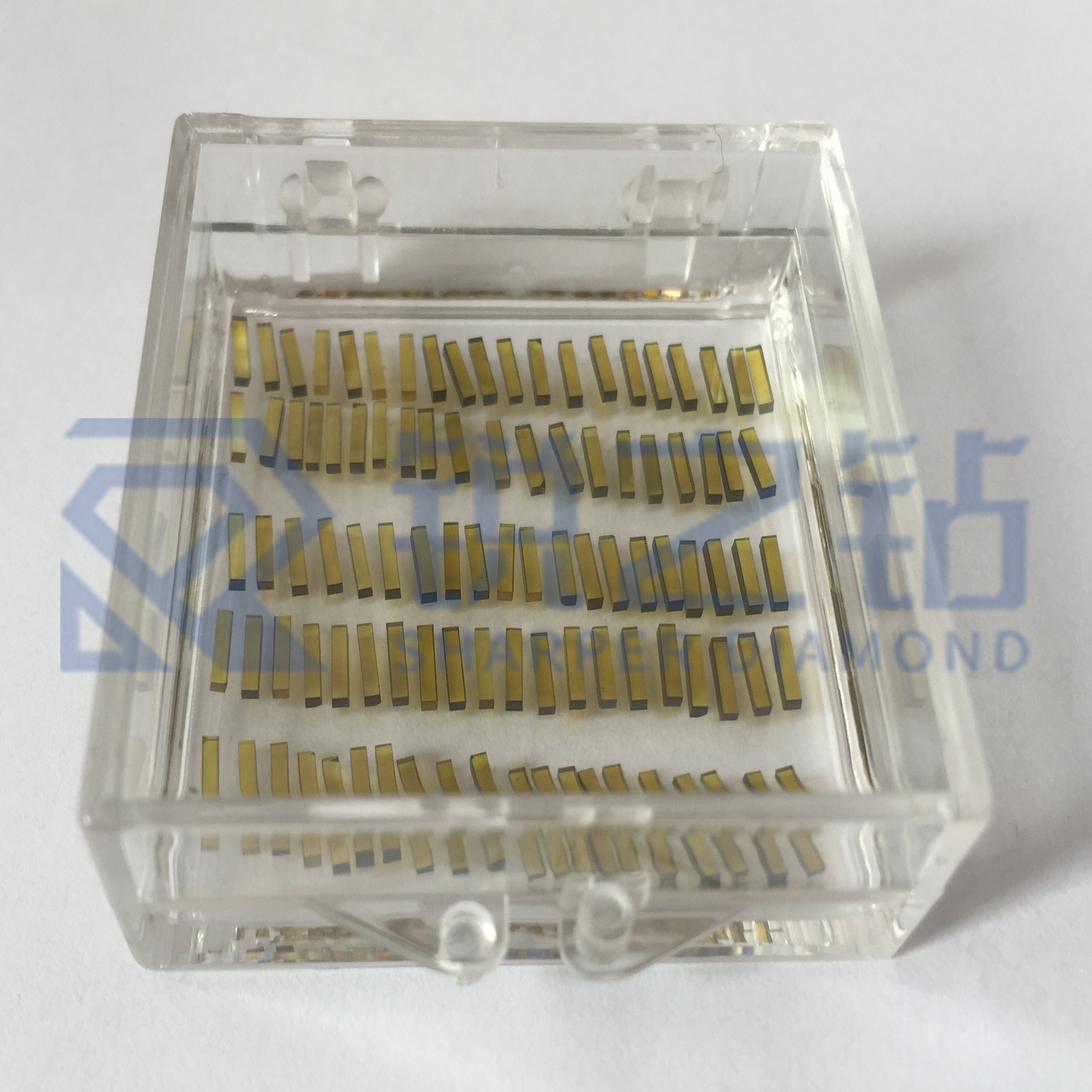

Packing and shipping:
Package: small sealed plastic bag and carton(strong and safe package) Delivery: usually 3-7 working days after the payment confirmation

Shipment:

Product Tags:

4x0.6x0.6mm HPHT Diamond Plate

Long strip Yellow HPHT Diamond

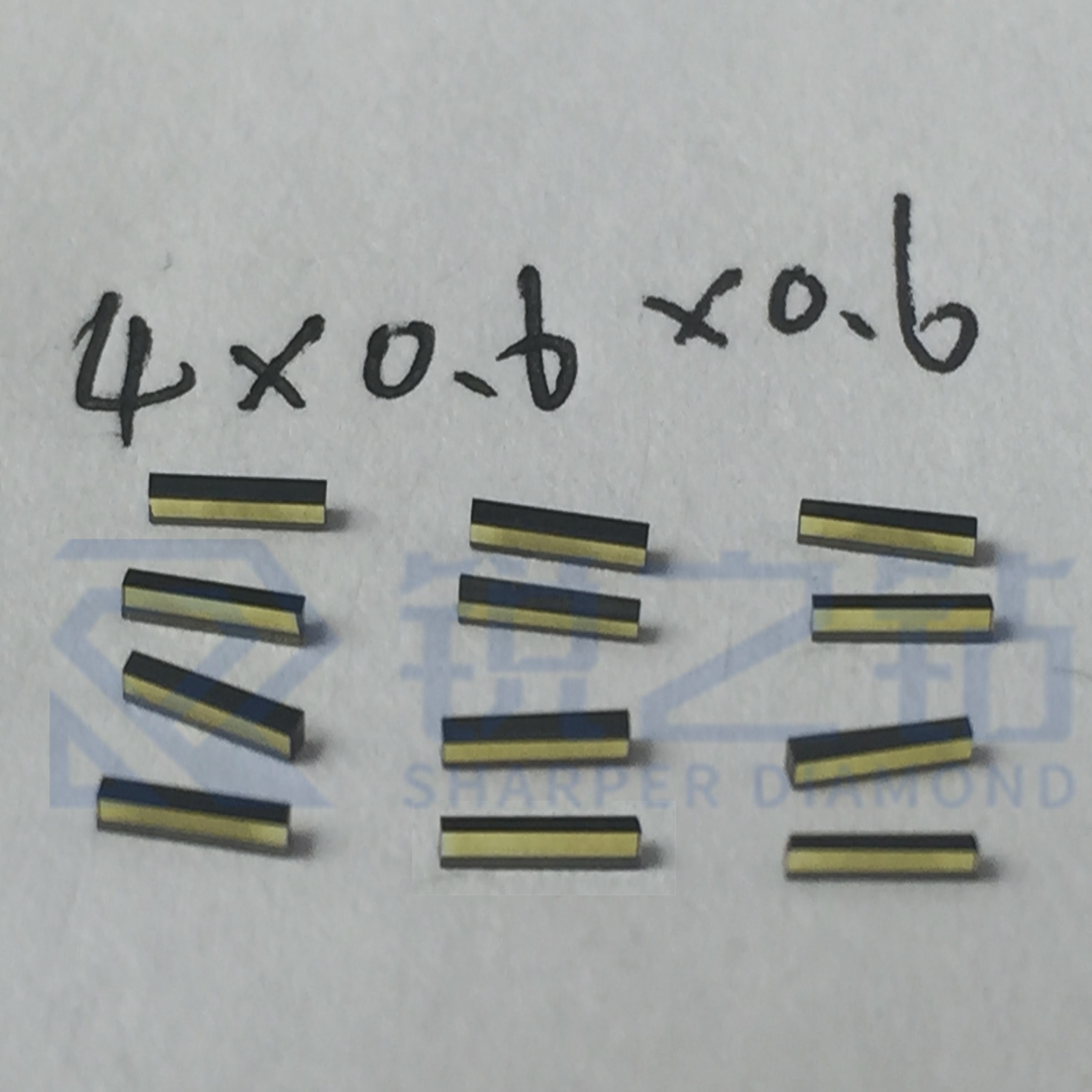

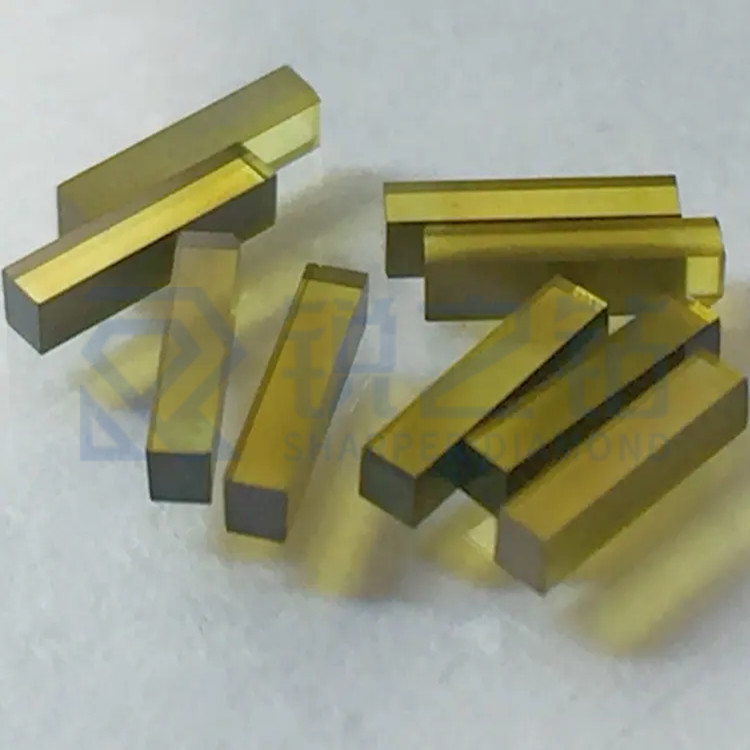

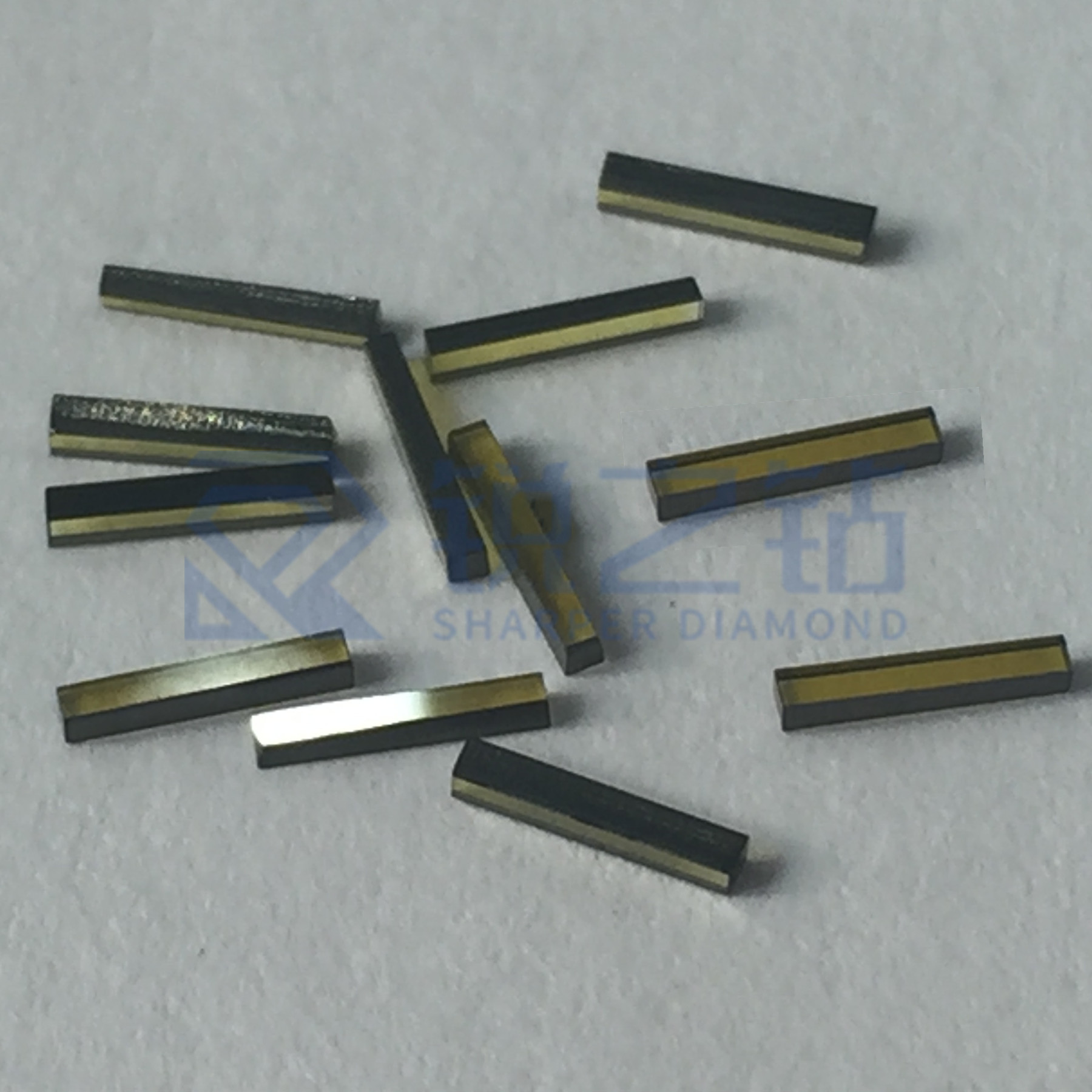

SCD11 4x0.6x0.6mm Yellow HPHT Diamond Plate With Full Four 90 Degree Corners Images
