0.1 Mm Optical CVD Diamond Plate Opticl Diamond Window

Brand Name : Chenguang

Model Number : SCD

Place of Origin : China

MOQ : 10pcs

Price : To be negotiated

Payment Terms : T/T, Western Union, PayPal

Supply Ability : 100pcs/7days

Delivery Time : 7 working days

Packaging Details : packed in box then into carton

Crystal growth process : single crystal CVD

Color : Colorless

Orientation : 4pt/100

Available Shape : Circle ,Square,triangle, Trapezoid

Edges : Laser Cut

Edge Features : < 0.1 mm

Edge Orientation : <100> edges

Laser Kerf : 3-5°

Contact Now

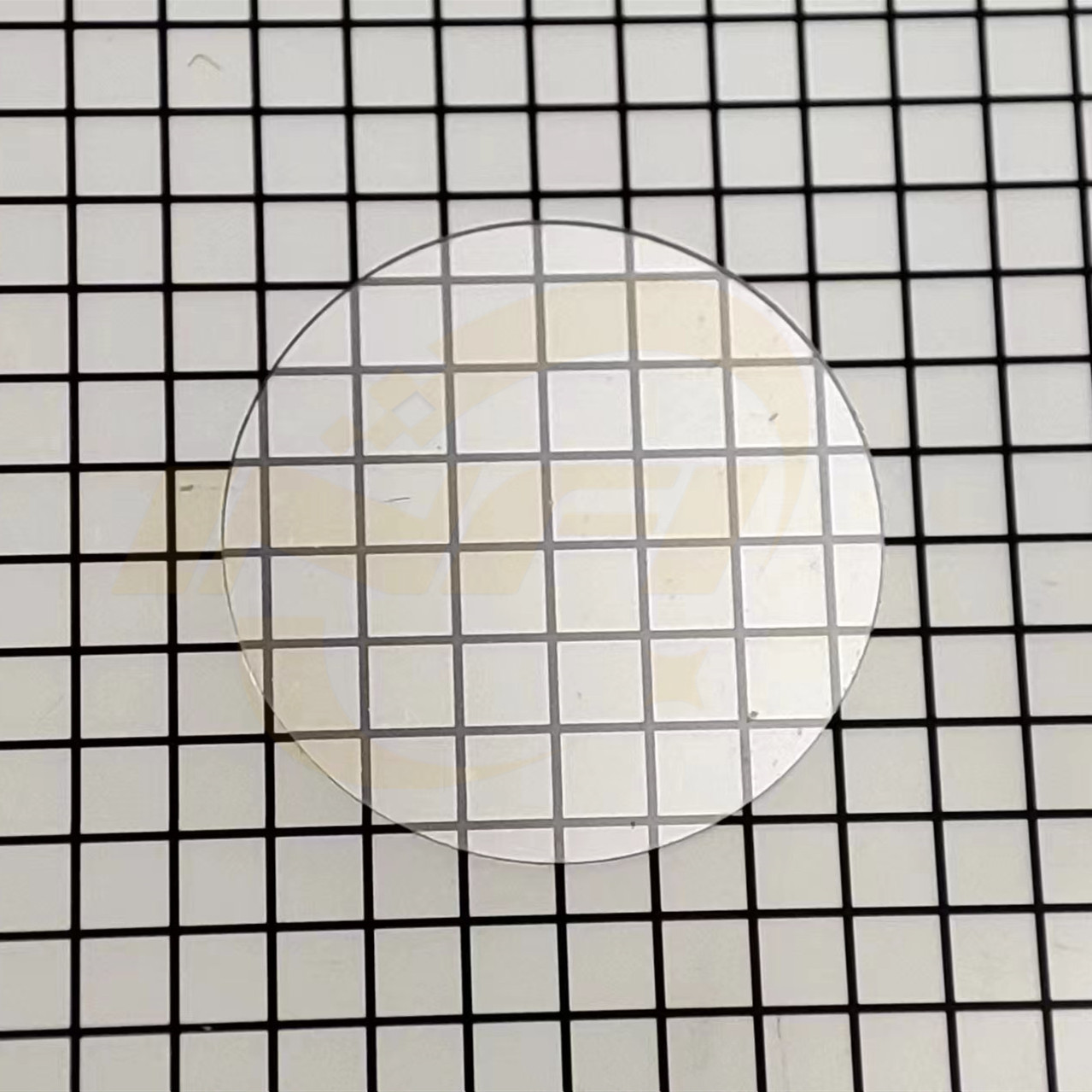

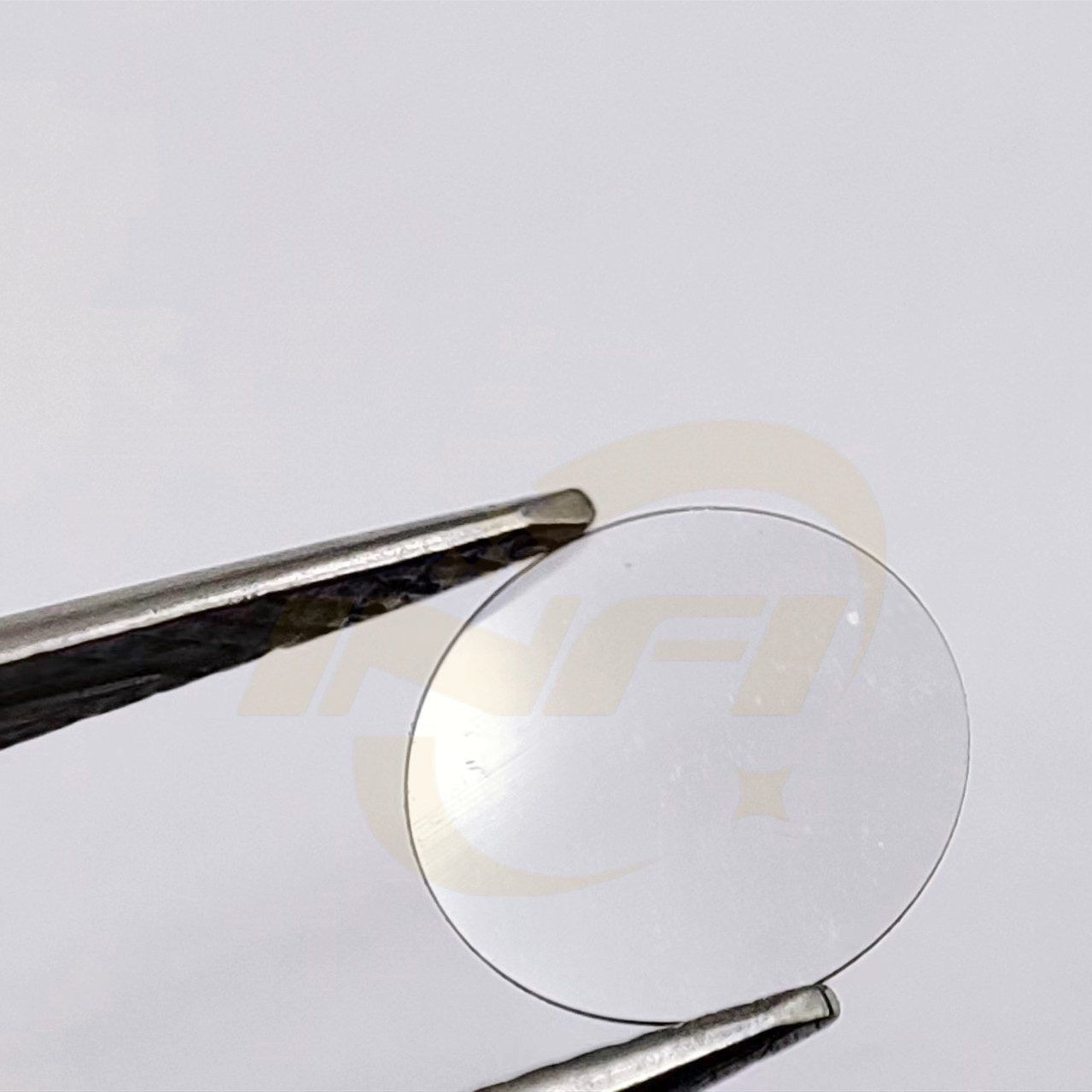

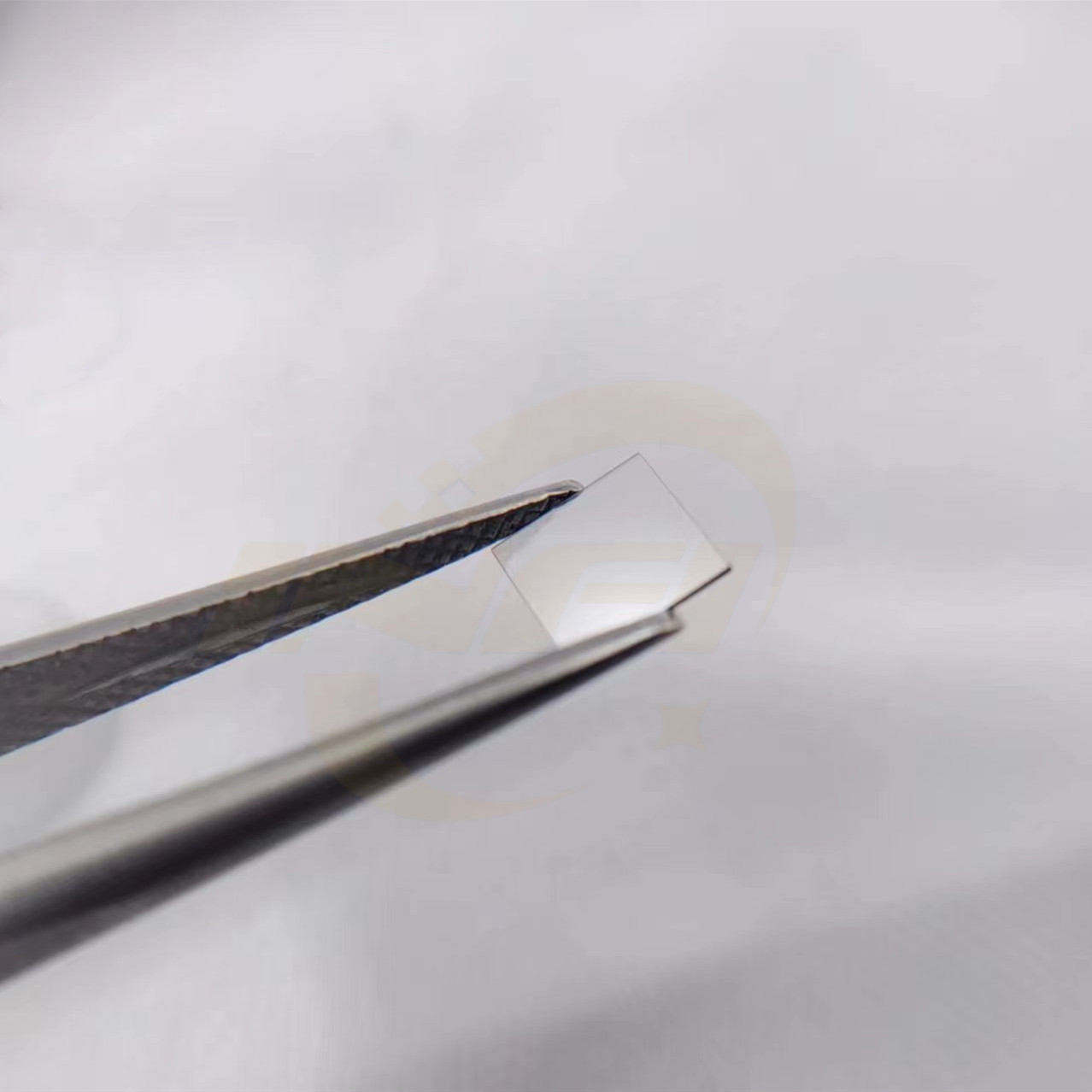

0.1 mm Optical CVD diamond plate opticl diamond window

0.1 Mm Optical CVD Diamond Plate Opticl Diamond Window0.1 Mm Optical CVD Diamond Plate Opticl Diamond Window0.1 Mm Optical CVD Diamond Plate Opticl Diamond Window0.1 Mm Optical CVD Diamond Plate Opticl Diamond Window0.1 Mm Optical CVD Diamond Plate Opticl Diamond Window

Product Parameter:

Specialfications:

Application High power CO2 lasers
High power solid state lasers
Spectroscopy (both laboratory and in-line)
Semiconductor processing
Terahertz and radar applications
(Bio)Medical optics
Defence and aerospace (highpower/multi-spectral imaging)
Other cutting edge technical applications for optical CVD diamond include: beam splitters,YAG cooling, particle detection and quantum sensing.UV, IR, MW, X-ray windows.

Crystal growth process: single crystal CVD
Color: Colorless
Key product features:
• Extremely broad transmission spectrum
1064nm:＞65% ;
8μm～25μm:＞70% .
• Highest thermal conductivity (>2000 W m-1 K-1)
• Chemically inert and operates in corrosive environments
• Biocompatiblity
• Scratch resistant
• Low birefringence
• Highest Raman gain coefficient
• Low absorption

• Thicknesses available up to 3 mm
• Wide range of sizes available
• Single crystal path length >10 mm
Benefits: • High quality surface finishes on abrasive
• workpiece materials
• Outperforms natural diamond due to its consistent and predictable material properties
• Offers superior edge quality in ultra-precision machining operations
Orientation: 4pt/100

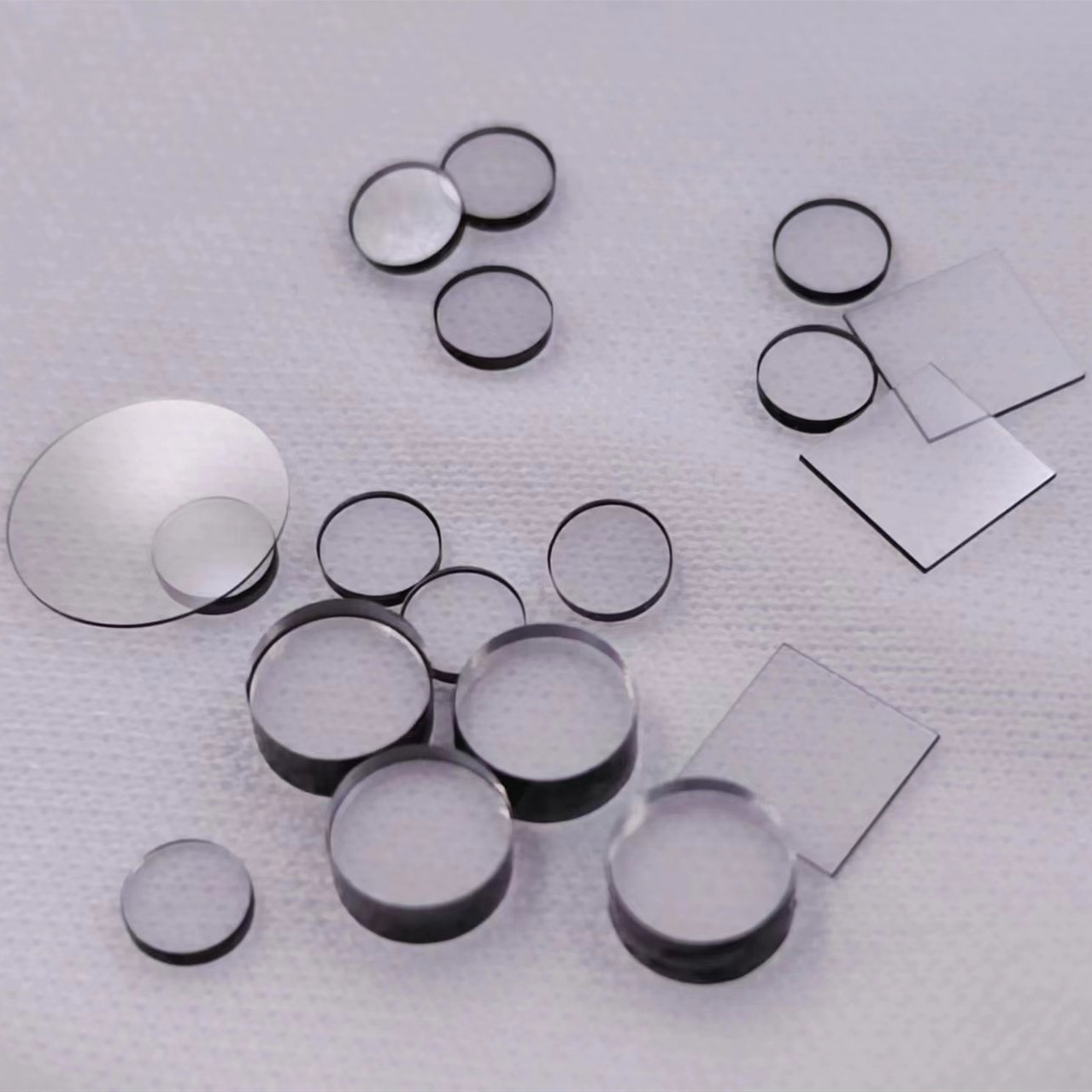

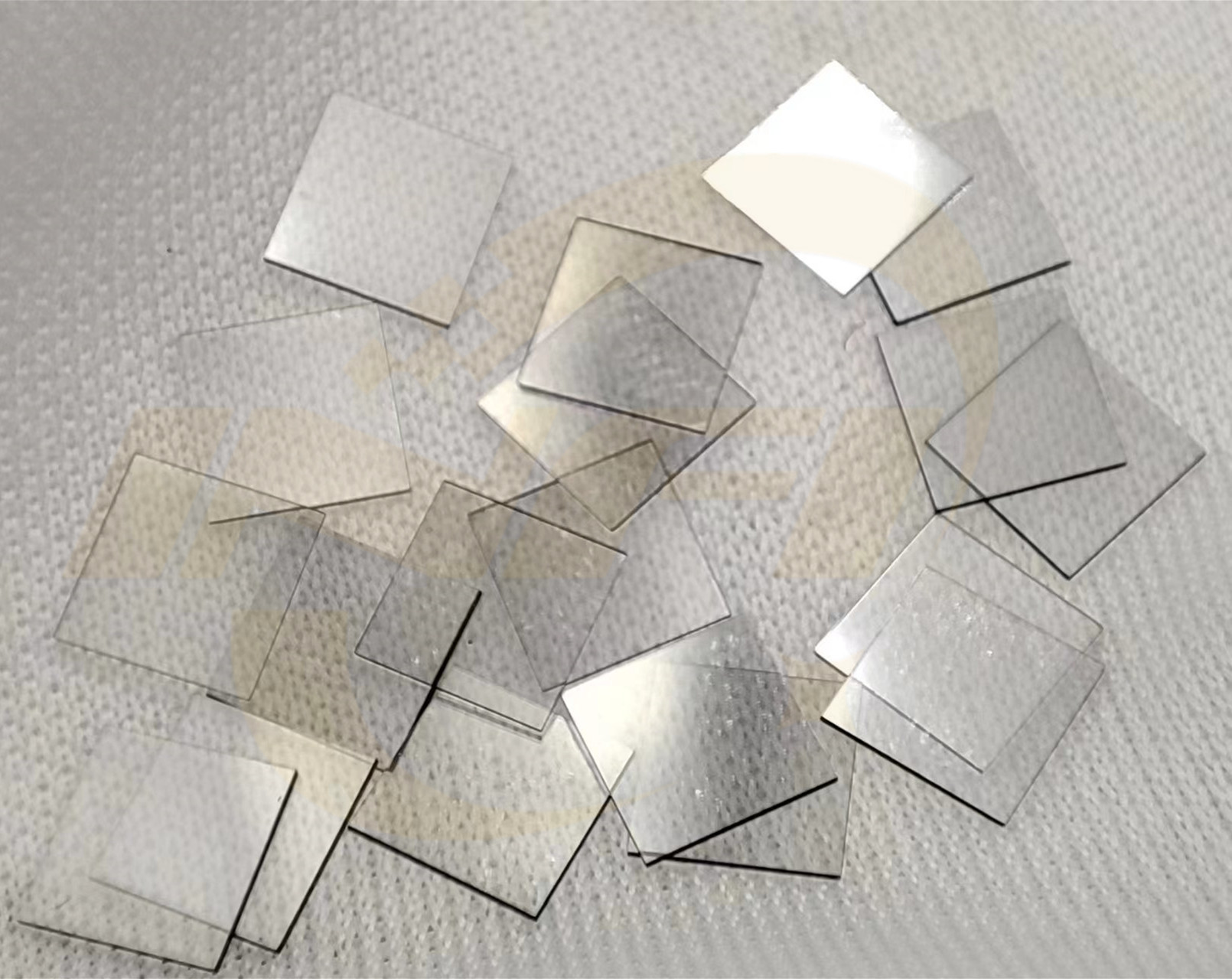

Available Shape: Circle ,Square,triangle, Trapezoid,
Size range: 2-15 mm (single crystal CVD diamond),
Thickness: 0.05-3mm,
up to 10*10*2 and 15*15*0.5

Edges Laser Cut
Edge Features < 0.2 mm
Edge Orientation <100> edges
Face Orientation {100} faces
Laser Kerf 3-5°
Lateral Tolerance: ‘+0.1/-0.1 mm
Flatness Within 2µm
Parallelism : 10-20um
Polished sides Roughness, Ra polished, Ra < 10-30 nm
Thickness Tolerance ‘+/- 0.05 mm
Boron Concentration [B]: <0.05ppm
Nitrogen Concentration: < 10 ppm
Refractive Index (10.6 µm) (1): 1064nm:2.392
600nm:2.415
Thermal Conductivity: typically > 1900 Wm-1K-1
Transmission: Transmittance :1064nm:＞65%
8μm～25μm:＞70%
